Motorized Deluxe Light Filtering Double Cellular Shades
SKU: BLN-MDLFDCS
Made to order, ships in 5–7 business days. Once shipped, delivery typically takes 5 business days, depending on your location.
Our most popular double cell cellular shade now has motorized lift built right in! Enjoy the benefits of year-round energy savings plus the convenience of remote-control motorization all in one. The two layers of light filtering honeycomb-shaped cells provide insulation and complete privacy. Choose from either standard or top-down bottom-up!
- 1/2" Double Cell Layer
- Smart Option: Motorize
Color: Khaki
22 colors available
$ - Essential
Mount: Not selected
Size: 24" W × 36" H
Measurements to the nearest 1/8 inch.
Fit or Free Guarantee. If for any reason your window coverings don't fit, even if you make a mistake in measuring, we'll remake them in the size you need free of charge. More details about the Fit or Free Guarantee
Lift Type: Not selected
Installation Type: Not selectedOptional
Door Brackets (Hold Downs): Not selectedOptional
Name your windowOptional
Installation help nearby
DIY Install is simple, but if you'd prefer help, enter your ZIP code to find available pros in your area.
- Fit or Free Guarantee
- Free Shipping
- 60-Day Satisfaction Guarantee
Product Information
Our customers rave about our Deluxe Light Filtering Double Cellular Shades, and you will too once you get these motorized shades installed in your windows! With a motor and rechargeable battery enclosed inside the headrail, this sleek window shade is a top performer for energy savings, privacy and convenience. Raise and lower the shade with the push of a button on the remote control, including easy full-lower, full-raise, a programmable "favorite" position for mid-height, and easy adjustments to any position. Choose the top-down/bottom-up version to also lower the top of the shade for even more flexibility for privacy and light control. Year-round insultation against heat loss in the winter and heat-gain in the summer helps save you money on heating and cooling costs.
Get to know this shade:

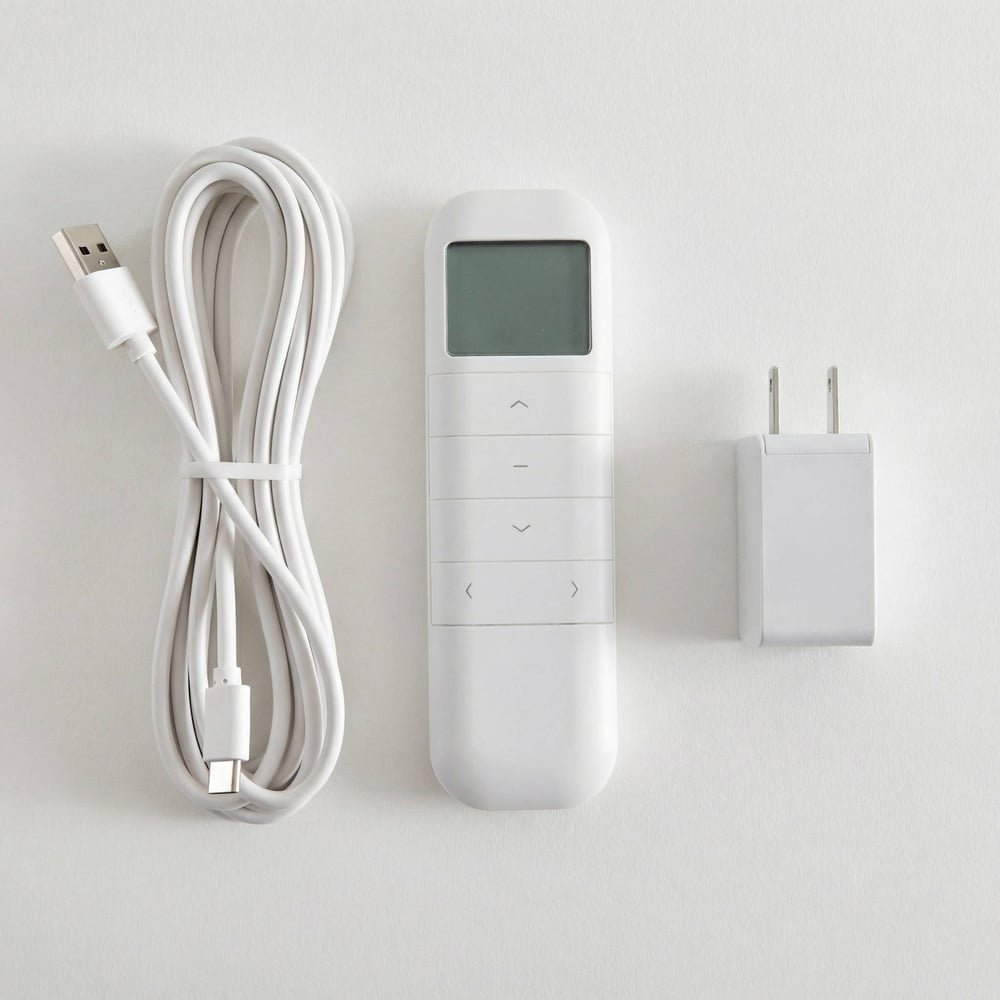

- Motorized operation with long lasting rechargeable battery, includes one extra-long charging cord per order
- Choose either standard bottom-up lift, or optional top-down/bottom-up operation
- Double cell light filtering fabric has a high insulation R-value of 4.5, and offers great privacy and sound absorption
- Aluminum headrail is color coordinated to the shade
- Cellular fabric has 9/16" pleats and is made with "D-cell" construction to prevent the front of the shade from sagging
- Back side of fabric is white towards the street for a neutral appearance from the outside
Why you'll love this shade:
- Enjoy the convenience of motorized operation via remote control – you can operate shades individually or simultaneously
- Provides effortless operation (great for tall or hard to reach windows!)

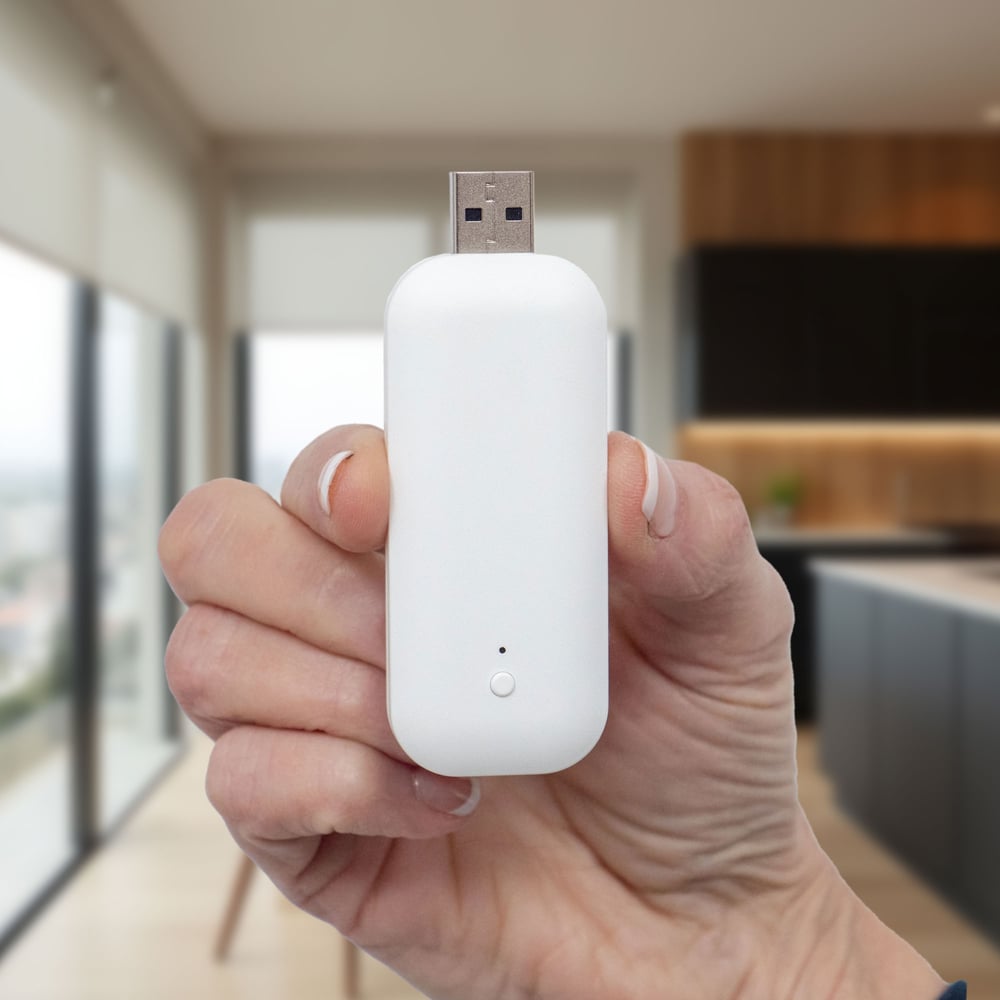

- Optional smart hub enables app-based control and integration with home automation systems
- Double-cell material is made in the USA and energy efficient to help limit heat gain in summer and heat loss in winter
- Top quality components for long-lasting performance and excellent good looks
- Meets all CPSC child safety guidelines
Key considerations:
- One remote control can operate multiple shades; at least one remote is required per order
- Inside mount shades must be attached to the top of the window casing, side mount not available
- Be sure to check all your window sizes for minimum width requirements for standard and top-down/bottom-up motorization
Great for:Living RoomBedroomOfficeKitchenDining RoomEntry WayUtility Room
- Child & Pet Safety
- Privacy
- Insulating/Energy Efficient
Made to order, ships in 5–7 business days. Once shipped, delivery typically takes 5 business days, depending on your location.

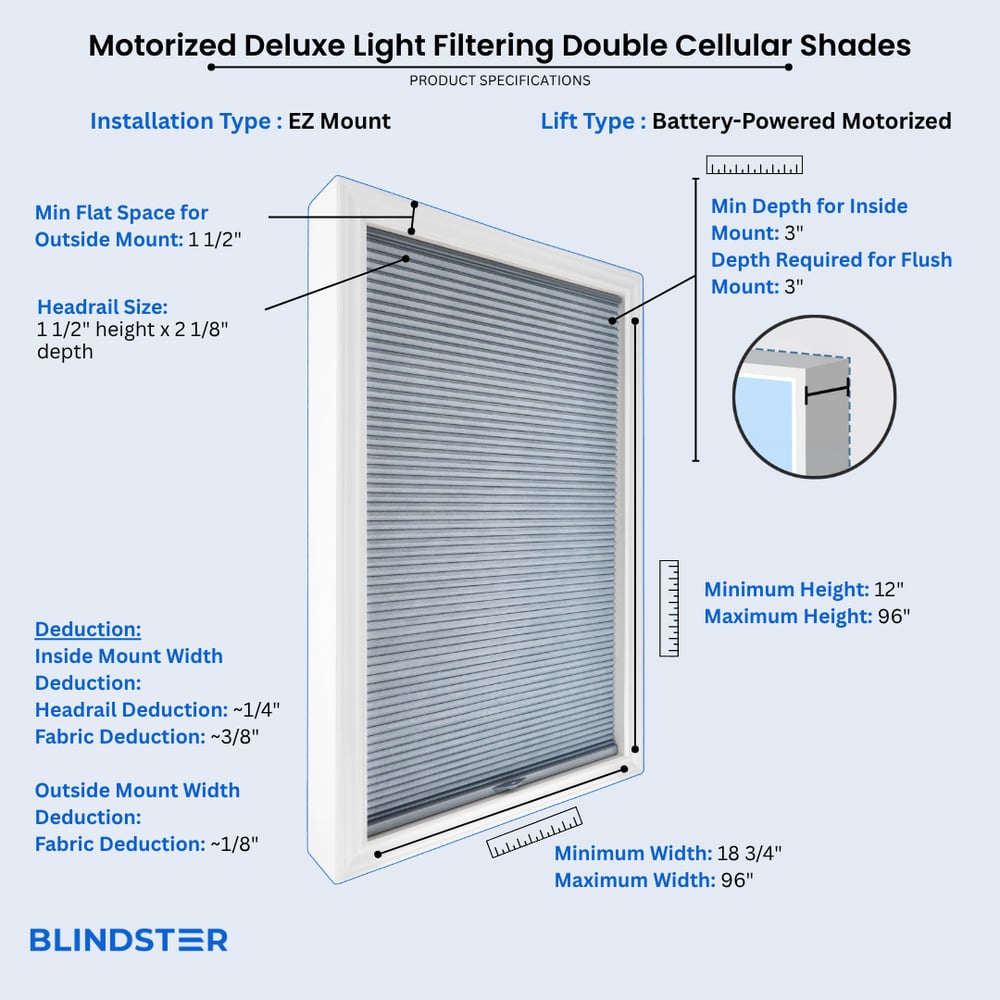

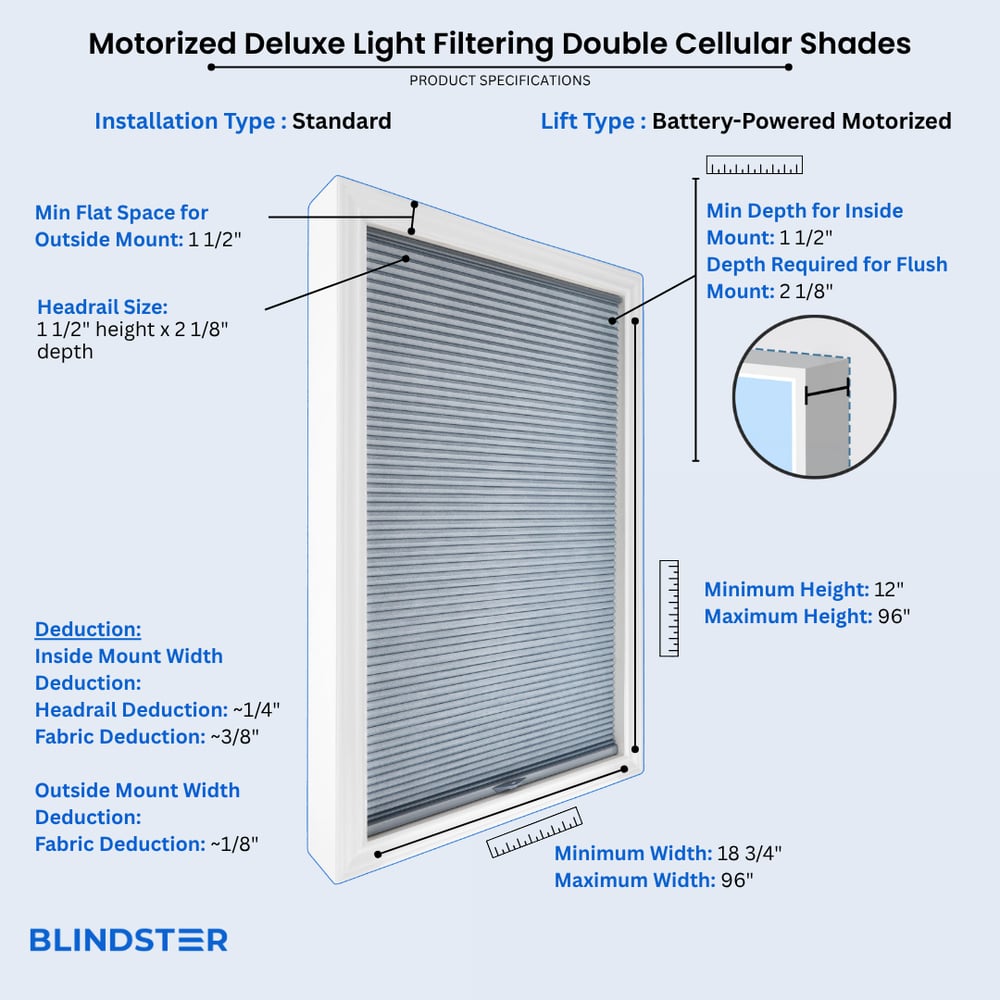

Specifications & Restrictions
- Width
- 18 3/4" – 96"
- Height
- 12" – 96"
- Min flat space for outside mount
1 ½ inches
- Min depth for inside mount
1 ½ inches (Standard Installation); 3 inches (EZ Mount Installation)
- Depth required for flush mount
2 1/8 inches (Standard Installation); 3 inches (EZ Mount Installation)
- Headrail size
1 1/2" height x 2 1/8" depth
- Inside Mount Width Deduction
Approximately ¼ inch headrail deduction and 3/8 inch fabric deduction
- Outside Mount
Headrail is made at ordered width; Fabric will be approximately 3/16 inch less
- Remote Control Range
80 feet
- Easy Rechargeable Feature
8.4 volt adapter plugs into standard electrical outlet, has a 13 feet black cord
- Battery Lifespan
The average battery charge will last 6-12 months
- Charger Included
1 Charger per 5 shades on an order included
*Recharge time on a shade is 5 hours, chargers are not meant to be plugged into the shade long term.
Restrictions
- Side Mount not available for Inside Mount, top mount only
- EZ Mount not available for Outside Mount
- Motorized lift on cellular shades is not compatible with the motorized lift on our Solar, Roller, or Zebra Sheer Shades
How to Measure
How to Measure: Inside Mount
3 min read
Let's make sure an inside mount will work for your window! Using a metal tape measure, first check if you have sufficient depth:
- Measure inside the window opening from the back of the window to the front of the opening where the shade would mount. The depth at the top of the window must be at least 1 1/4" inches for Motorized to mount the brackets. To have a flush mount (meaning the shade is fully recessed in the window opening), the depth must be at least 2 1/4" inches. If your depth is not sufficient for mounting the brackets, please see our outside mount instructions or consider a different product.
- 3" of depth is needed at the top of the window opening if ordering the EZ Mount headrail.
How to Measure:
Let's start with the Width:
- Measure inside of the window opening/frame from left to right to the nearest 1/8" at three places: at the top of the opening, the middle of the opening, and then the bottom of the opening. Write down all 3 measurements and circle the narrowest. If rounding is necessary, round down to the nearest 1/8". That is your ordering width.
Now, let's do the Height:
- Measure the inside of the window opening/frame from the top of the opening to the bottom of the opening/sill to the nearest 1/8" in three places: on the left-hand side, the middle, and on the right-hand side. Write down all 3 measurements and circle the tallest. That is your ordering height.
Note: Always provide us with the actual measurement of the window opening. We will make the necessary deduction of approximately 1/4" to your shade's headrail and 3/8" to the fabric width to allow room for installation and for proper movement of the shade within the window opening. No deductions will be made to your height.
How to Measure: Outside Mount
3 min read
Before you start measuring, decide where above your window opening you want to mount your shade. You will need at least 1 1/2" inches of flat vertical space above the window to mount the brackets. The shade can be installed directly above the window opening, or higher up to give the appearance of a larger window and to have more clear space in the window when the shade is raised.
If you have trim around the window, you can mount the shade above the trim, directly on the trim (if you have the required minimum flat space for the brackets), or to the sides of the trim if you do not have enough mounting space above the window or on the trim itself. See the directions below for how you'd like to install your shade.
If you do not have sufficient vertical space for mounting the brackets, please see our inside mount instructions or consider a different product.
Width:
- Looking at your window and surrounding wall, decide what area you would like to cover. We recommend the shade extends about 2" on each side of the window opening for the best light control and appearance.
- Using a metal tape measure, measure from left to right including your desired extra space on each side of the window—that is your ordering width.
Height:
- Consider how far above the window you would like to install your shade but at least starting with the minimum vertical space referenced above. The shade can be positioned higher up to give the appearance of a larger window and to have more clear space in the window when the shade is raised.
- Measure from the top of where you will mount the shade on the wall down to where you want the bottom of the shade to be, using the same extra space below your window opening as you used above; if you have a protruding windowsill, measure down to the top of the sill. That is your ordering height.
Width:
- Looking at your window and surrounding wall, decide what area you would like to cover. We recommend the shade extends about 2" on either side of the window opening for the best light control and appearance. You can also choose to have the shade the same width as your window trim.
- Using a metal tape measure, measure from left to right including any desired extra space on each side of the window—that is your ordering width.
Height:
- Consider how far above the window you would like to install your shade but at least starting with the minimum vertical space referenced above. The shade can be positioned higher up to give the appearance of a larger window and to have more clear space in the window when the shade is raised.
- Measure from the top of where you will mount the shade on the wall down to where you want the bottom of the shade to be, using the same extra space below your window opening as you used above, or to the bottom edge of the trim if you prefer; if you have a protruding windowsill, measure down to the top of the sill. That is your ordering height.
Note: We provide complimentary spacer blocks upon request. These go behind the installation brackets to position the shade away from the wall and prevent the shade from hitting the frame. Spacer blocks add an additional 3/8" of depth for installation.
Width:
- Confirm that the height of your trim is at least the minimum height required for installing the mounting brackets. At the top of your window, use a steel measuring tape and measure from outer edge to outer edge of the trim. That is your ordering width.
Height:
- Measure from the top of your trim to the bottom of your trim or to the top of the windowsill if you have a protruding sill. That is your ordering height.
Width:
- Using a metal tape measure, measure left to right from the outside edge of the trim piece that goes around the glass to the other outside edge. That is your ordering width. However, if you have space, it is best to order the shade about 2" wider for better light control.
Height:
- Consider how far above the window trim piece you would like to install your shade but at least starting with the minimum vertical space referenced above. Measure down to where you want the bottom of the shade to be, using the same extra space below the window trim piece as you used above. That is your ordering height.
Note: We carry complimentary hold-downs (door brackets) which can be requested during the ordering process. These should be installed for a successful door mount as they secure the shade at the bottom of the door so that it does not swing when the door opens and closes.
How to Install
How to Install: Inside Mount
2 min read
Let's make sure you have what you need!
What came with your shades?
- Installation brackets
- #6 hex head screws (one per bracket mounting hole)
- EZ-Mount Headrail*
- Remote*
- Hub*
What else will you need in order to complete the installation?
- Rechargeable drill with 3/32" drill bit & ¼" hex nut driver bit
- Phillips screwdriver
- Pencil
- Tape measure
- Ladder
*If applicable to your order.
Download the PDF below for a complete step by step guide on how to install your inside mount blinds based on the lift type and for more information on how many brackets are required for your order.
How to Install: Outside Mount
4 min read
Let's make sure you have what you need!
What came with your shades?
- Installation brackets
- Spacer blocks*
- Hold down brackets*
- #6 hex head screws (one per bracket mounting hole)
- EZ-Mount Headrail*
- Remote*
- Hub*
What else will you need in order to complete the installation?
- Rechargeable drill with 3/32" drill bit & ¼" hex nut driver bit
- Phillips screwdriver
- Pencil
- Tape measure
- Ladder
*If applicable to your order.
Download the PDF below for a complete step by step guide on how to install your outside mount blinds based on the lift type and for more information on how many brackets are required for your order.
Videos
Product Expert Review - Blindster Deluxe Cellular Shades
Motorized Blinds and Shades
Cellular Shades - The Choice for Maximum Versatility
How to Install Cellular Shades
How to Measure for Inside Mount
How to Measure for Outside Mount
How They're Made - Cellular Shades
