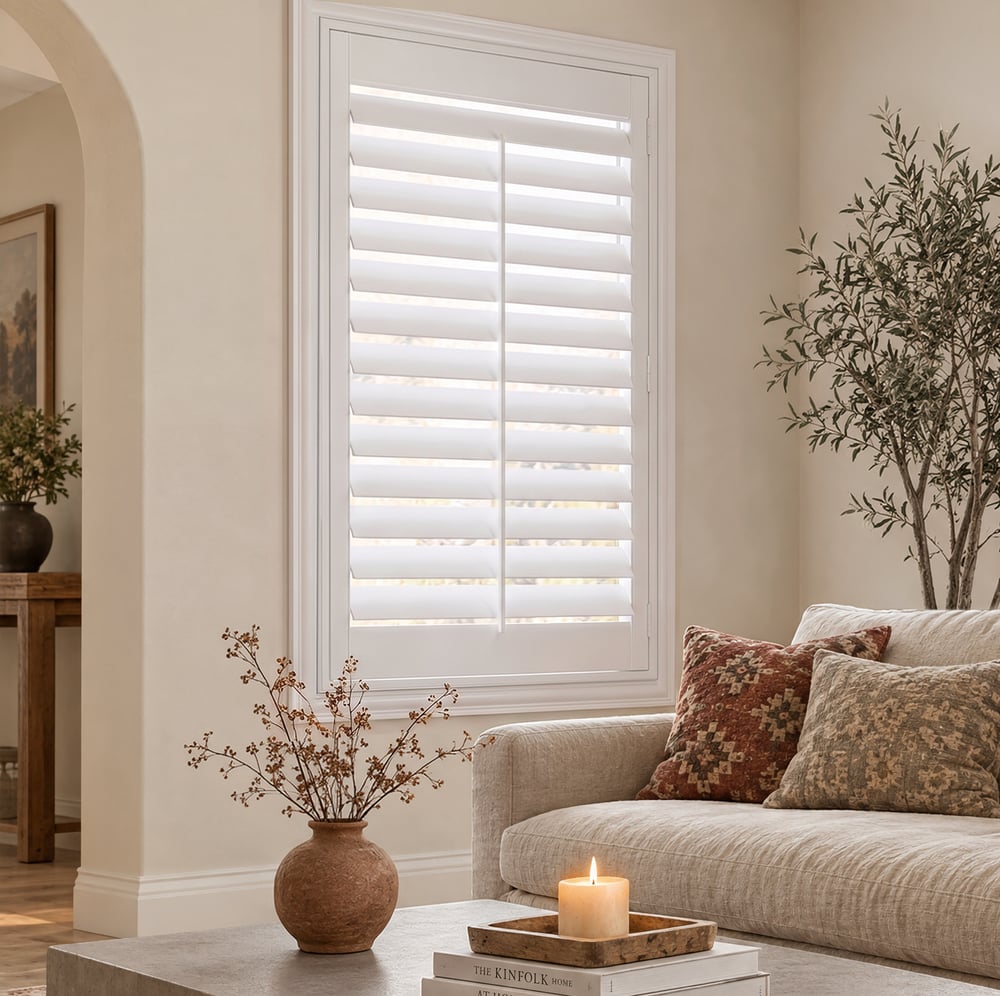

Premium Faux Wood Plantation Shutters

Please Note: Our shutters are designed for square and rectangular windows only. We do not offer shutters for arched, curved, or specialty size windows.

Let's make sure you have what you need!

• A metal tape measure
• Pen and paper to record all measurements
• Determine whether you will mount as an inside mount Z-Frame or an inside mount L-Frame based on the depth requirements and your window configuration.
  • Z-Frame: Mounted inside the front edges of the window opening with a trim-cased window frame.
    • Can be installed in windows with up to a ½" variance between your 3 width and 3 height measurements (see below).
    • Have a protruding sill? This frame will have a flat bottom sill plate that rests on top of the sill for support.
    • Depth requirements:

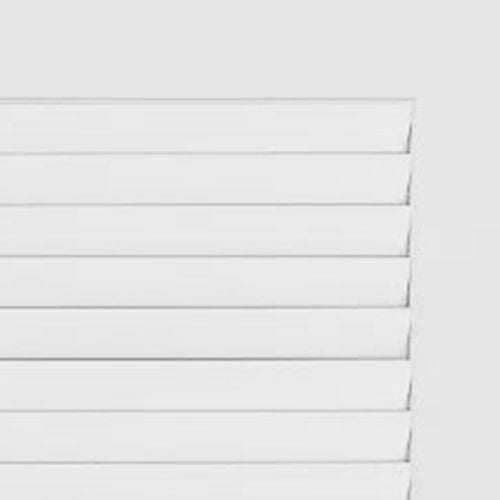

      • 2 ½" Louvers: 1 3/8" of depth

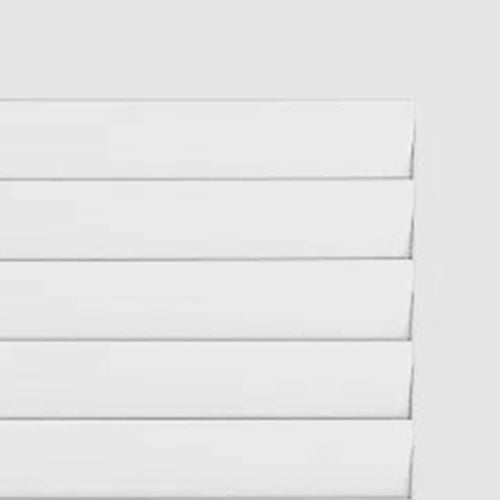

      • 3 ½" Louvers: 1 7/8" of depth
  • L-Frame: Mounted inside the window opening, is fully recessed and flush with the wall.
    • *Window frames that do not have equal measurements may create gaps between the shutter frame and the window opening. Caulk can be used to fill the gap.
    • If the variance between your 3 width and/or height measurements is more than ½", we recommend an outside mount L-Frame.
    • Depth requirements:
      • 2 ½" Louvers: 1 ¾" of depth
      • 3 ½" Louvers: 2 ¼" of depth

How to Measure:

Let's start with the Width:

• Inside of the window opening/frame measure from left to right at the top of the opening, the middle of the opening, and then the bottom of the opening. Write down all 3 measurements and circle the narrowest. If rounding is necessary, round down to the nearest 1/8”.  That is your ordering width.

Now, let's do the Height:

• Inside of the window opening/frame measure from the top of the opening to the bottom of the opening/sill on the left-hand side, the middle, and on the right-hand side. Write down all 3 measurements and circle the smallest. If rounding is necessary, round down to the nearest 1/8". That is your ordering height.

Note: You are ordering the exact window opening size, not the size of the shutter to the nearest 1/8". The factory will make a deduction to your Width or Height to ensure your shutter will fit your opening.

Please Note: Our shutters are designed for square and rectangular windows only. We do not offer shutters for arched, curved, or specialty size windows.

Let's make sure you have what you need!

• A metal tape measure
• Pen and paper to record all measurements
• Check if you have sufficient flat space and depth: This outside mount L-Frame requires 1 ½" of flat space around the window. If you plan to mount this frame onto existing molding or trim, that space must also be at least 1 ½" wide.
  • L-Frame: Mounted outside the window opening onto an existing wall, door, molding, or trim.
    • Depth requirements:
      • 2 ½" Louvers: 1/8" of depth
      • 3 ½" Louvers: ½" of depth

How to Measure:

Let's start with the Width:

• If you are mounting the frames onto existing molding or trim, measure from the outside edges of the molding left to right at the top of the opening, the middle of the opening, and then the bottom of the opening. Write down all 3 measurements and circle the largest. Subtract 3" from the largest measurement (the one you circled). If rounding is necessary, round down to the nearest 1/8”.  That is your ordering width.
• If you are not mounting on existing molding or trim, measure from left to right at the top of the opening, the middle of the opening, and then the bottom of the opening. Write down all 3 measurements and circle the largest. That is your ordering width.

Now, let's do the Height:

• Follow the instructions for the configuration that applies to you:
  • YES to molding/trim, YES to a protruding windowsill:
    • Measure from the top of the sill to the outside edge of the trim above the window opening on the left-hand side, the middle, and on the right-hand side. Write down all 3 measurements and circle the tallest. Subtract 1 ½" from the tallest measurement (the one you circled). That is your ordering height.
  • NO to molding/trim, YES to a protruding windowsill:
    • Measure from the top of the sill to the top of the window opening on the left-hand side, the middle, and on the right-hand side. Write down all 3 measurements and circle the tallest. That is your ordering height.
  • NO to molding/trim, NO to a protruding windowsill:
    • Measure the height of the window opening on the left-hand side, the middle, and on the right-hand side. Write down all 3 measurements and circle the tallest. If rounding is necessary, round up to the nearest 1/8". That is your ordering height.
  • YES to molding/trim, NO to a protruding windowsill:
    • Measure the height of the window frame including trim, from outside edge to outside edge on the left-hand side, the middle, and on the right-hand side. Write down all 3 measurements and circle the tallest. Subtract 3" from the tallest measurement (the one you circled). If rounding is necessary, round up to the nearest 1/8". That is your ordering height.

Note: The factory will ADD 1 ½" for each frame side so that the entire width of the L frame is outside of the window opening. (Unless there is a bottom existing window sill, in which case they would not add the 1 ½" at the bottom.) They will not make any deductions to your Width or Height.

Let's make sure you have what you need!

What came with your shutters?

1. Hoffman Key
2. Hinge Screws
3. Hinge Pins
4. Hinge Spacers

What else will you need in order to complete the installation?

1. Variable speed drill
2. Slotted screwdriver
3. Non marring hammer
4. Level
5. Pencil
6. Tape measure
7. Ladder
8. Moving blanket/drop cloth
9. Small wooden block (used to prevent floor damage)

Download the PDF below for a complete step by step guide on how to install your new shutters.

Let's make sure you have what you need!

What came with your shutters?

1. Hoffman Key
2. Hinge Screws
3. Hinge Pins
4. Hinge Spacers

What else will you need in order to complete the installation?

1. Variable speed drill
2. Slotted screwdriver
3. Non marring hammer
4. Level
5. Pencil
6. Tape measure
7. Ladder
8. Moving blanket/drop cloth

Download the PDF below for a complete step by step guide on how to install your new shutters.
